Union Special BC291U24-1M

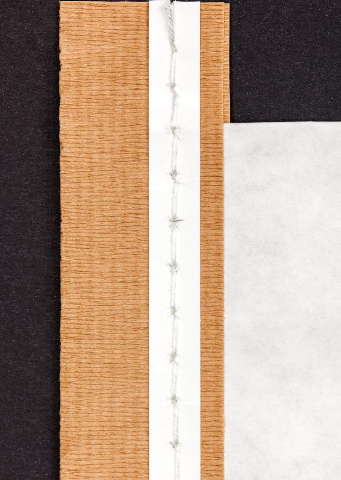

Automatic High Performance Single Thread Chainstitch Bag Closing Machine with Paper Tape for “Easy-Open” Closure
High Performance single thread chainstitch bag closing machine, automatic version with vertical acting presser foot system for closing filled bags respectively binding the seam with a crepe paper tape for an “easy-open” closure. Tape folder adjustable to 50-70 mm wide paper tape. Independently adjustable chaining and presser foot pressure for optimized bag feeding. Low thread tension reduces the risk of thread breakage. Internal forced lubrication, shell design casting with large external oil filter. Low noise and vibration. Easy and quick sewing speed adjustment.
| Type No. | BC291U24-1M |
|---|---|
| Series | BC200 |
| Application | Säcke zunähen |
| Stitches/min. | 2.750 |
| Stitch range | 6.50mm – 12.50mm |
| Standard setting | 8.00mm |
| Capacity under presser foot | 12.70mm |
| Thread chain and tape cutter | Electropneumatically guillotine (rotary air cylinder) |
| Handling | Stationary |
| Corrosion protection | Rostgeschützt |
| Class | Hochleistung |
| Sewing capacity on paper | 32 plies |
| Bag material | PP woven-fabric PP laminated woven fabric Paper |
| Bag feed-in | Automatische Zuführung |
| Lubrication | Forced lubrication |
| Protection classes | Protection class III |
| Standard needle | 9848GF250/100 |
| Start-stop | Automatically by feeler controlled proximity switch |
| Stitch types | 101 |
| Feed type | Bottom feed |
| Closures | Easy-open and crepe tape closure Crepe tape closure |
| Voltage | 24V DC |
| Color | White |
| Packing mass (L/W/H) | 66cm/45cm/50cm |
| Net weight | 46kg |
| Gross weight | 51kg |
