HERAKLES Single-Needle Three-Thread Carpet Overedging Machine with Upper- and Lower Feed

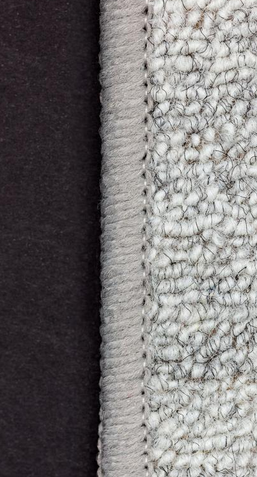

“HERAKLES” single-needle, three-thread carpet overedging machine with guide for binding tape. Plain feed with synchronized upper feed. For decorative overseaming on carpets and rugs. The combined upper and lower feed is especially suitable for overedging carpets with or without rubber coated and rubber foam backing and similar coatings with strong adhesion. The fabric is fed uniformly, without undesired stitch shortenings which perforate the basic carpet tissue. The binding tape is put around the carpet edge by a tape guide and covered by the overedge seam. Width of binding tape 15 mm (19/32 in). Sewing capacity for carpet in tape guide: 12 mm (15/32).
| Type No. | 81200AC |
|---|---|
| Series | 81200 |
| Application | overseaming carpet |
| Stitches/min. | 1.800 |
| Stitch range | 2.50mm – 6.00mm |
| Standard setting | 3.50mm |
| Capacity under presser foot | 16.00mm |
| Thread chain and tape cutter | (Ohne) |
| Bag material | Carpet material |
| Lubrication | Manual lubrication |
| Standard needle | 9844GA230/090 |
| Stitch types | 505 |
| Feed type | Top and bottom feed |
| Closures | Decorative carpet overedging |
| Needles | 1 |
| Thread | Whipping yarn |
| Installation | Table assembly |
| Color | Olivegreen |
| Packing mass (L/W/H) | 46cm/47cm/61cm |
| Net weight | 42kg |
| Gross weight | 37kg |
