Union Special 80800U
Automatic Bag Closing Machine for Crepe Tape

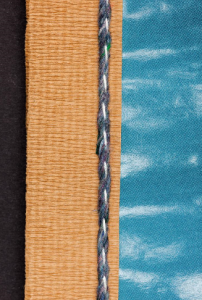

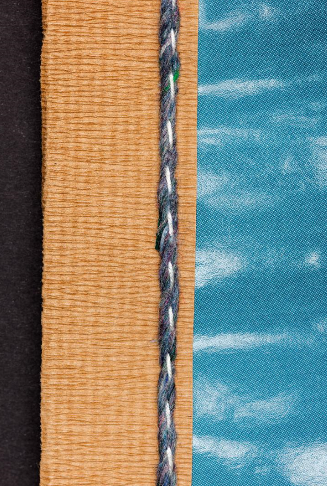

Automatic double locked chainstitch bag closing machine for closing different kind of filled bags respectively binding the same with a 50-70 mm wide crepe or plastic tape. Tape folder adjustable to 50-70 mm wide tape. Guides for filler cord for sealing the needle punctures. Feeler controlled start and stop device with contact free electronic proximity switch.
| Type No. | 80800U |
|---|---|
| Series | 80800 |
| Application | Säcke zunähen |
| Bags per hour | 1.080 |
| Stitches/min. | 1.800 |
| Stitch range | 6.50mm – 10.00mm |
| Standard setting | 8.00mm |
| Capacity under presser foot | 7.00mm |
| Thread chain and tape cutter | Elektromagnetischer Bandabschneider |
| Handling | Stationary |
| Class | Standard |
| Sewing capacity on paper | 24 plies |
| Bag material | PP woven-fabric PP laminated woven fabric PE-material Paper |
| Standard needle | 9848G250/100 |
| Start-stop | Automatically by feeler controlled proximity switch |
| Stitch types | 401 |
| Feed type | Bottom feed |
| Closures | Plain closure Closure with filler-cord Crepe tape closure PP-tape closure |
| Voltage | 230V AC |
| Color | Olivegreen |
| Packing mass (L/W/H) | 46cm/47cm/61cm |
| Net weight | 38kg |
| Gross weight | 43kg |
