Union Special 80800RDL
Automatic Two Needle Bag Closing Machine

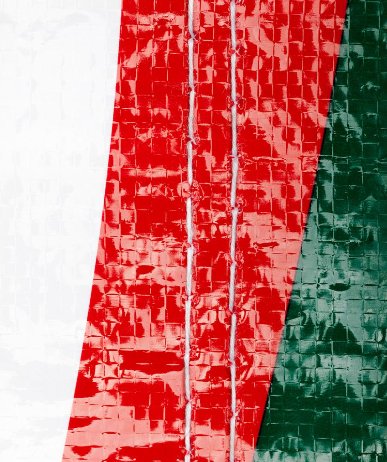

Automatic two needle four thread double locked stitch bag closing machine for closing diffeent kind of filled bags. Needle distance 7,2 mm. Electro pneumatically operated thread chain cutter. Feeler controlled start and stop device with contact free electronic proximity switch. The staggered needles reduce the gap between the needle holes by almost half of the adjusted stitch length resulting in a higher density between the layers.
| Type No. | 80800RDL |
|---|---|
| Series | 80800 |
| Application | Säcke zunähen |
| Bags per hour | 1.080 |
| Stitches/min. | 1.800 |
| Stitch range | 6.50mm – 11.00mm |
| Standard setting | 10.00mm |
| Capacity under presser foot | 16.00mm |
| Thread chain and tape cutter | Electropneumatically jump out knive |
| Handling | Stationary |
| Class | Standard |
| Sewing capacity on paper | 32 plies |
| Bag material | Jute PP woven-fabric PP laminated woven fabric PE-material Burlap bag Paper |
| Lubrication | Manual lubrication |
| Protection classes | Protection class I |
| Standard needle | 9848G250/100 |
| Start-stop | Automatically by feeler controlled proximity switch |
| Stitch types | (401.401) |
| Feed type | Bottom feed |
| Closures | Plain closure Fold over closure Closure with filler-cord |
| Voltage | 230V AC |
| Color | Olivegreen |
| Packing mass (L/W/H) | 46cm/47cm/61cm |
| Net weight | 29kg |
| Gross weight | 34kg |
