Union Special 80800CD
Standard Two Needle Bag Closing Machine

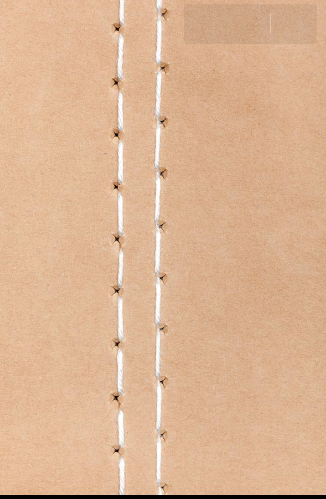

Standard Two-needle four thread double locked-stitch bag closing machine. For closing filled bags. Needle 7,2 mm, staggered. Guides for filler cord for sealing the needle punctures. Mechanically driven thread chain cutter.
| Type No. | 80800CD |
|---|---|
| Series | 80800 |
| Application | Säcke zunähen |
| Bags per hour | 1.080 |
| Stitches/min. | 1.800 |
| Stitch range | 6.50mm – 11.00mm |
| Standard setting | 10.00mm |
| Capacity under presser foot | 16.00mm |
| Thread chain and tape cutter | Continuously driven nibbler knive |
| Handling | Stationary |
| Class | Standard |
| Sewing capacity on paper | 32 plies |
| Bag material | Jute PP woven-fabric PP laminated woven fabric PE-material Burlap bag Paper |
| Bag feed-in | Manuelle Zuführung |
| Lubrication | Manual lubrication |
| Standard needle | 9848G250/100 |
| Start-stop | Über Fußschalter der Säule |
| Stitch types | (401.401) |
| Feed type | Bottom feed |
| Closures | Plain closure Fold over closure Closure with filler-cord |
| Color | Olivegreen |
| Packing mass (L/W/H) | 46cm/47cm/41cm |
| Net weight | 29kg |
| Gross weight | 34kg |
