Two Needle Independent Rows Double Locked Stitch Machine with Top and Bottom Feed and Double Puller for Joining two Geotextiles Layers of Fabric
Two needle independent rows double locked stitch machine with top and bottom feed and with intermittent double puller for joining two geotextiles layers of fabric. Both upper puller rollers and the rear lower puller roller are mechanically driven. Sewing capacity with two layers of material under presser foot are possible up to 18 mm. Complete with moveable carrier and Efka compact drive. Assemblage
| Type No. | 80700CD3Z3290P |
|---|---|
| Series | 80700 |
| Application | Geotextile |
| Stitches/min. | 800 – 1.000 |
| Stitch range | 6.00mm – 12.00mm |
| Standard setting | 10.00mm |
| Capacity under presser foot | 18.00mm |
| Thread chain and tape cutter | (Ohne) |
| Bag material | Other |
| Lubrication | Manual lubrication |
| Standard needle | 9848G300/120 |

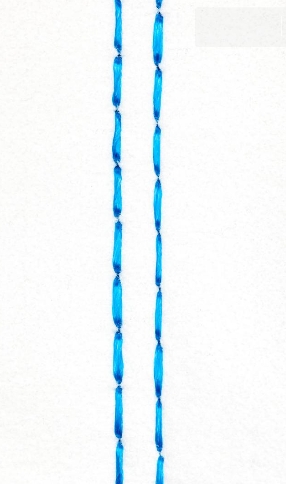

| Stitch types | (401.401) |
| Feed type | Top and bottom feed |
| Closures | Plain closure |
| Branche | Geologic materials |
| Needles | 2 |
| Thread | 4000-6000Den |
| Installation | Table assembly |
| Color | Olivegreen |
| Net weight | 52kg |
| Gross weight | 57kg |
